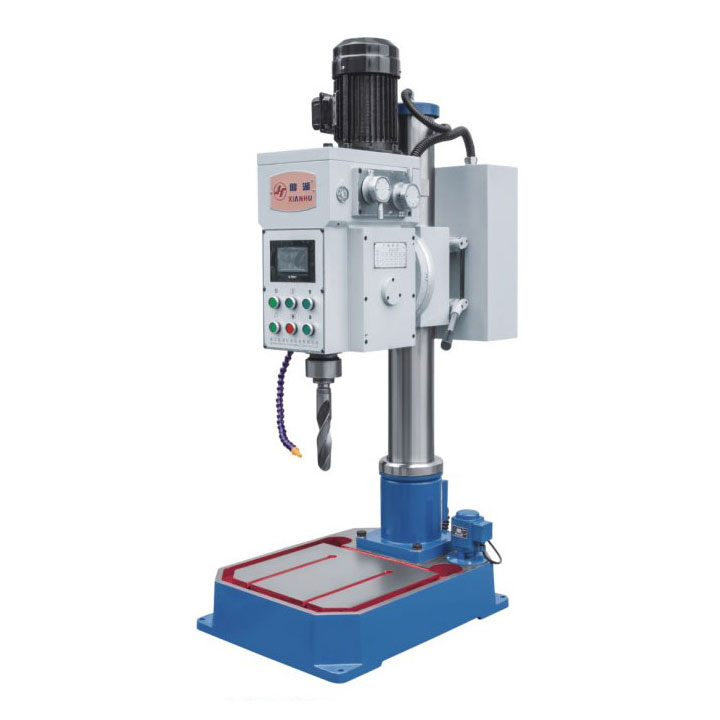

型号 Model |
ZS-40B |
最大钻孔直径(铸件/钢件)Max.Drilling capacity(cast iron/steel)(mm) |
40/32 |
主轴最大行程 Spindle travel(mm) |
170 |
主轴中心至立柱表面距离
Dimension spindle axis to column surface(mm) |
289 |
主轴端面至底座台面最大距离
Max.Distance spindle nose to table(mm) |
800 |
主轴锥度 Spindle taper |
MT4 |
主轴转速级数 Spindle speeds serse(级) |
6 |
主轴转速范围 Spindle speeds range(r/min) |
90-1380 |
主轴进给范围 Range of spindle speeds(mm/r) |
0-8000 |
底座工作台面尺寸 Base working table size(mm) |
520×430 |
电机功率 Mort(Kw) |
1.5 |
伺服功率 Servo motor power(Kw) |
1.2 |
毛重/净重 G.W./N.W(Kg) |
380/350 |
包装尺寸 Packing dimension (mm) |
580×940×1480 |
